Brand: TILO
Made in China
Configuration: D65, TL84, CWF, UV, U30, A five light sources
Weight：35Kg
Dimensions(WxDxH)：710x530x570 mm

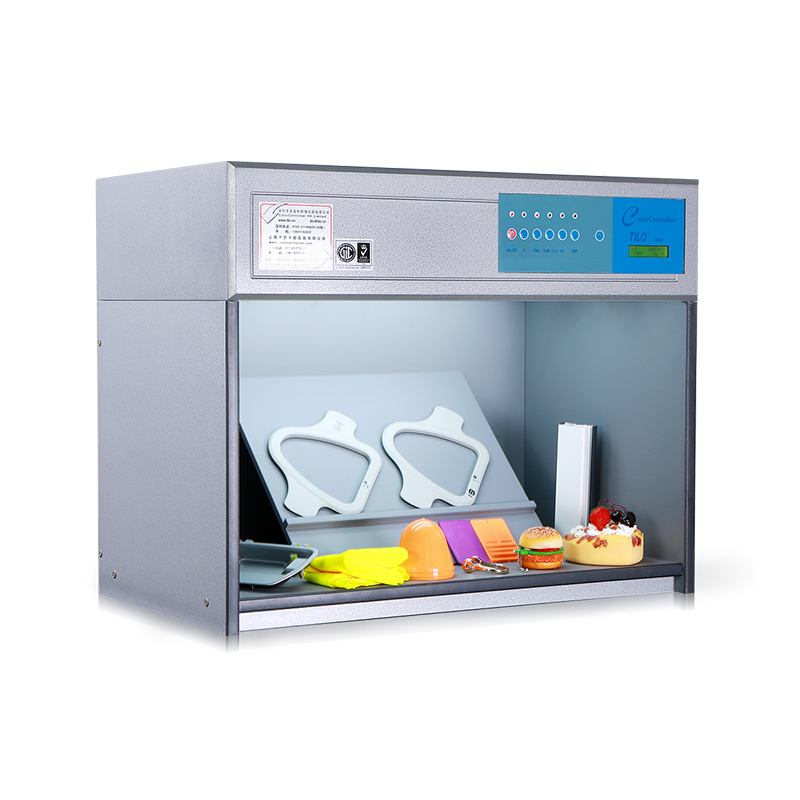

M60 color light booth is equipped with 5 light sources. Colors appear differently under different lighting sources. To avoid/reduce the assessment error when performing color contrast, we can make use of a Light Booth / Viewing Booth/Color Light Box to simulate different light sources to obtain an objective assessment of color and color difference, anytime, anywhere.
Optional accessories: light source diffuser, 45 degree standard stand.
Placement of 45 degree standard stand: Regardless of which observation method is used, the test sample must be placed in the middle of the light box as much as possible to reduce the influence of the external light source. In addition, the most important thing is that when you need to compare the color of two or more objects, you should also try not to overlap them. It is best to compare them side by side in the binding box.
1. Display usage time, name, and number of switches for each source
2. Automatic switching of light source with metamerism
3. No warm-up, no flashing, fast and reliable evaluation of colors
4. Low energy consumption, no heat dissipation, high luminous efficiency
5. Original American Judge II type lamp, the background color is fully compatible
6. TILO high standard international brand.
The Color matching booths / Colour assessment cabinet / Color matching light box can be applied to the industries that need to perform color difference testing as follows: as the premiere designer and manufacturer of color viewing and lighting products for the Graphic arts, Photographic, Textile, Dyeing, Packaging, Printing, Leather, Inks, Knitwear, Plastic, Automotive and Ceramics industries.
Made in China
Configuration: D65, TL84, CWF, UV, U30, A five light sources
Weight：35Kg
Dimensions(WxDxH)：710x530x570 mm
M60 color light booth is equipped with 5 light sources. Colors appear differently under different lighting sources. To avoid/reduce the assessment error when performing color contrast, we can make use of a Light Booth / Viewing Booth/Color Light Box to simulate different light sources to obtain an objective assessment of color and color difference, anytime, anywhere.
Optional accessories: light source diffuser, 45 degree standard stand.
Placement of 45 degree standard stand: Regardless of which observation method is used, the test sample must be placed in the middle of the light box as much as possible to reduce the influence of the external light source. In addition, the most important thing is that when you need to compare the color of two or more objects, you should also try not to overlap them. It is best to compare them side by side in the binding box.
Features:
1. Display usage time, name, and number of switches for each source
2. Automatic switching of light source with metamerism
3. No warm-up, no flashing, fast and reliable evaluation of colors
4. Low energy consumption, no heat dissipation, high luminous efficiency
5. Original American Judge II type lamp, the background color is fully compatible
6. TILO high standard international brand.
Application:
The Color matching booths / Colour assessment cabinet / Color matching light box can be applied to the industries that need to perform color difference testing as follows: as the premiere designer and manufacturer of color viewing and lighting products for the Graphic arts, Photographic, Textile, Dyeing, Packaging, Printing, Leather, Inks, Knitwear, Plastic, Automotive and Ceramics industries.
Specifications:
| Order No. | Name | Model | D65 | TL84/U30 | F/A | UV | CWF | Voltage |
| 10103 | Standard light source cabinets | M60 five light source(220V) | 2 pcs | 1 pcs | 4 pcs | 1 pcs | 1 pcs | 220V/50Hz |
| 10803 | Standard light source cabinets | M60 five light source(115V) | 2 pcs | 1 pcs | 4 pcs | 1 pcs | 1 pcs | 115V/60Hz |
Light Sources:
| Light Source | Color viewing booths application | Color temperature(k) | Power(W) | Brand&Specification |
| D65 | International standard Artificial Daylight | 6500 | 20 | Gretagmacbeth F20T12/65 |
| TL84 | Applied to stores in EuropeJapan and China | 4000 | 18 |
PHILIPS TLD 18W/840 |
| CWF | (Cool White Fluorescent)American Standard | 4150 | 18 |
SYLVANIA F20T12/CW |
| TL83 | Warm White Fluorescent American Standard | 3000 | 18 |
PHILIPS TLD 18W/830 |
| F |
"Sun-setting Light Yellow" incandescent light source(imitation of sunset) |
2700 | 40 |
3nh 40W |
| A | American shopwindow spotlight | 2700 | 40 |
3nh 60W |
| UV | Viewing under ultraviolet light to detect and evaluate optical brighteners or fluorescent pigments | Wavelength:365nm | 20 |
PHILIPS TLD 18W/BLB |
