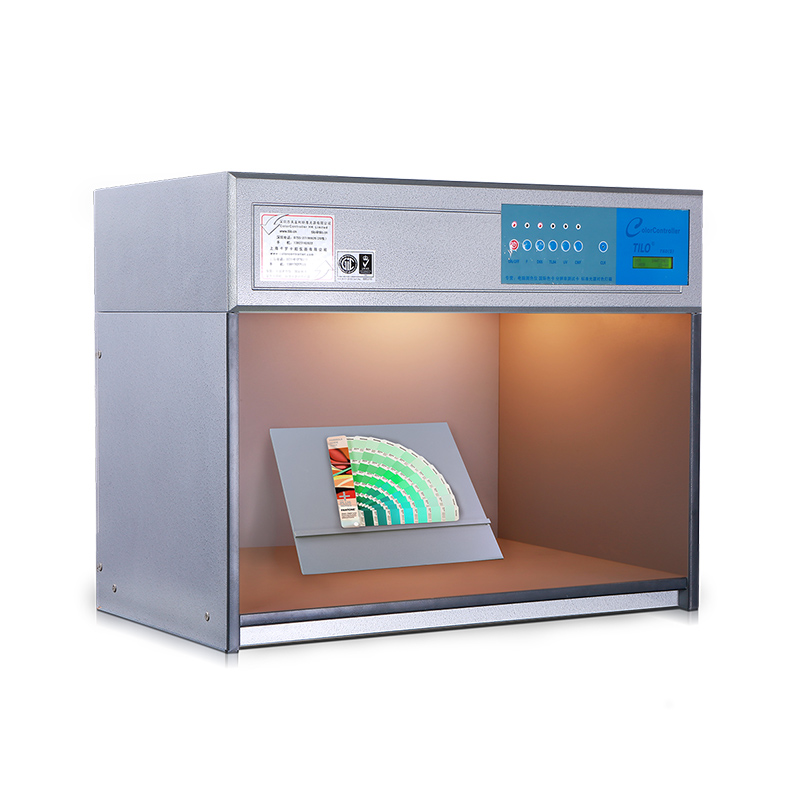

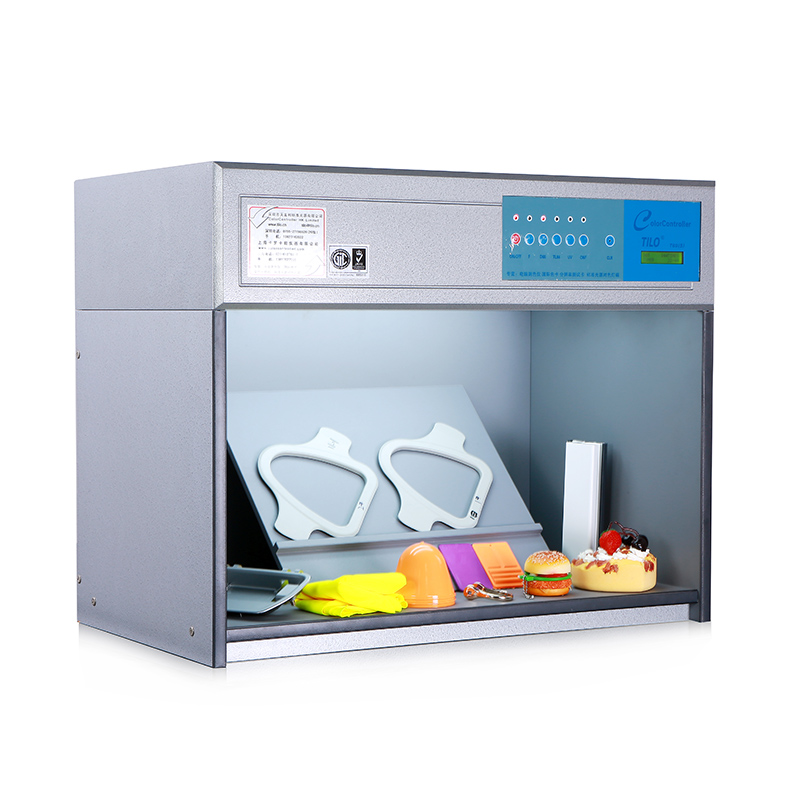

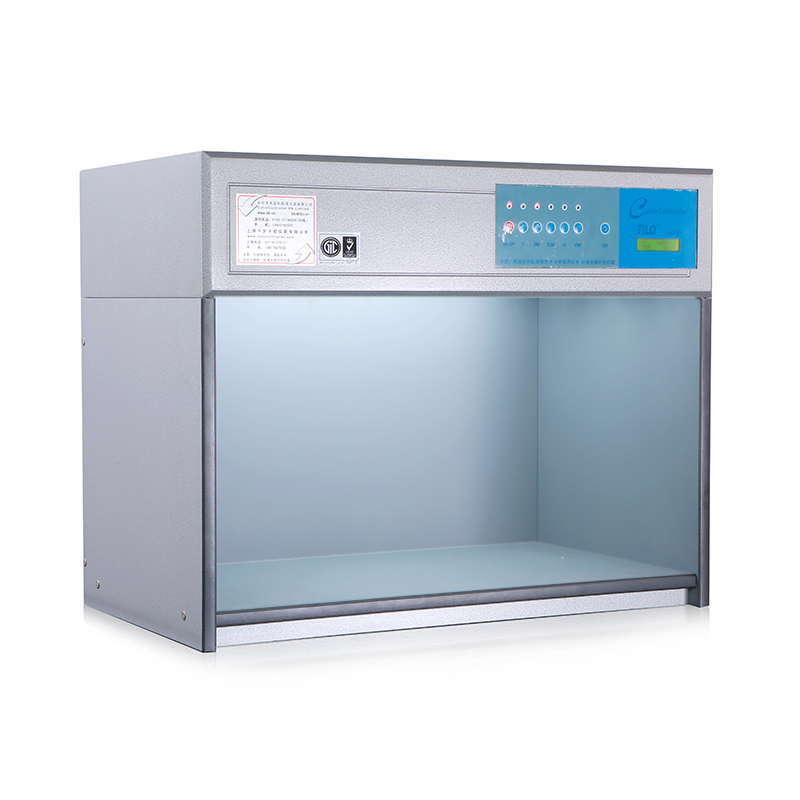

T60(5) Color Light Cabinet


Brand: TILO
Made in China
Configuration: D65, TL84, F, UV,CWF five light sources
Weight: 23Kg
Dimensions(WxDxH): 710x405x570 mm


TILO T60(5) color light cabinet is equipped with 5 light sources. The consistency of the light sources in all Tilo Colour Assessment Cabinets gives excellent viewing conditions for reliable colour critical decisions under consistent lighting.

TILO T60(5) color light cabinet can be applied to the industries that need to perform color difference testing as follows: as the premiere designer and manufacturer of color matching instrument products for the Graphic arts, Photographic, Textile, Dyeing, Packaging, Printing, Leather, Inks, Knitwear, Plastic, Automotive and Ceramics industries.




Features:

1. TILO Color light cabinet render color more accurately. With 5 different light sources(D65, TL84, CWF, F, UV), which can detect the metamerism.
2. Meets or exceeds major international standards for visual color evaluation including: ASTM D1729, ISO3664, DIN, ANSI and BSI.
3. Easy to operate by using individual switches for each light source.
4. Elapsed time meter for tracking optimal lamp replacement.
5. Automatically alternating among light sources.
6. No warm-up time or flickering which insures quick and reliable color judgment.
7. Economic power consumption and low heat generation for high light efficiency.
8. The dimension can be made by customized.




Specifications:

Order No.  Name Model D65 TL84 F UV CWF Voltage
10115  Standard light source cabinet   T60(5) five light source(220V) 2 pcs 2 pcs 4 pcs 1 pcs 2pcs 220V/50Hz
10815 Standard light source cabinet T60(5) five light source(115V) 2 pcs 2 pcs 4 pcs 1 pcs 2pcs 115V/60Hz
Optional accessories: light source diffuser45 degree standard stand.

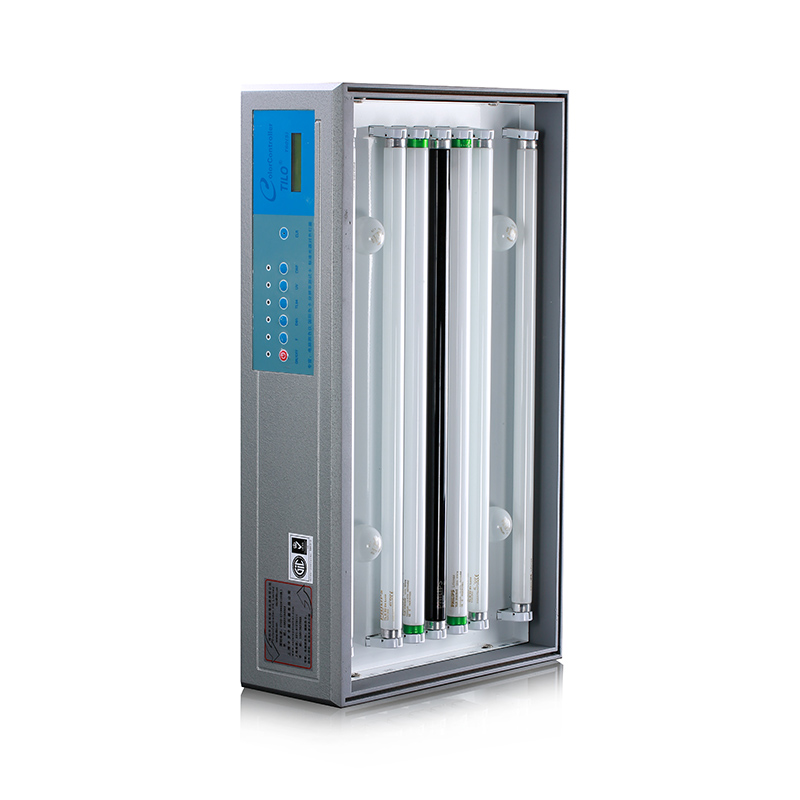

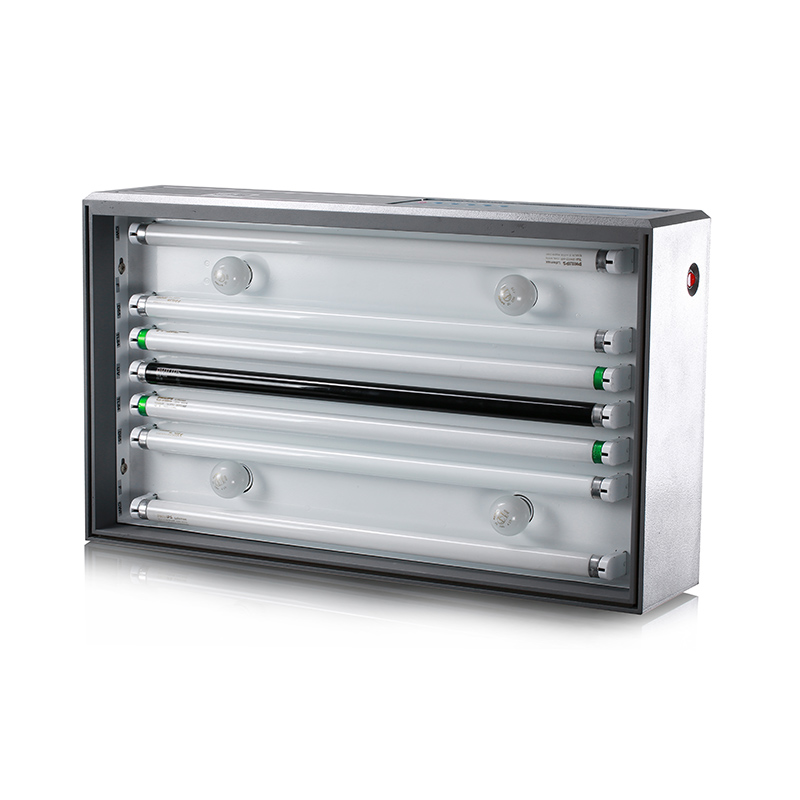

Light Sources:

Light Source Color viewing cabinet application Color temperature(k) Power(W)
D65 International standard Artificial Daylight 6500 18
TL84 Applied to stores in Europe, Japan and China 4000 18
CWF (Cool White Fluorescent) American Standard 4150 18
F/A "Sun-setting Light Yellow" incandescent light source (imitation of sunset) 2700 40
UV Viewing under ultraviolet light to detect and evaluate optical brighteners or fluorescent pigments Wave length:365nm 20
TL83 Warm White Fluorescent American Standard 3000 18
